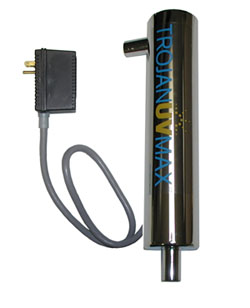

Trojan® Model A, 0-3 GPM UV System, 304 SS Chamber, 3/8"FNPT

Trojan's Model A offers an economical way to purify water at low flow rates. With disinfection available from 0-3 GPM, Model A is ideal for Point of Use (POU) application in households or light commercial use.

All Trojan UVMax Systems include all components and accessories needed for initial installation and use. These include UV Lamp, Electronic Ballast, Quartz Sleeve & 304 Stainless Steel UV Reactor (Water Chamber).

Trojan UV Systems treat the water for the whole home, eliminating 99.99% of bacteria and viruses including chlorine-resistant cysts that are not tested for in routine water tests (such as Cryptosporidium and Giardia)

Trojan UVMax Systems Warranty:
5-Year Warranty against manufacturer's defects on the power supply and all electrical components
10-Year Guarantee on the Stainless Steel UV Reactor
1-Year Warranty on lamps.

How does UV Work? The germicidal energy of ultraviolet light destroys harmful microorganisms by attacking their genetic core (DNA). This powerful does of UV light eliminates their ability to reproduce, and the organisms simply die.

Water is purified by running it through a watertight chamber that contains an ultraviolet lamp. As water flows past, microorganisms are exposed to a lethal dose of germicidal UV energy.

Purification with the TrojanUVMAX is a safe, natural process that adds no chemicals and does not affect the taste or odor of your water.

Specialized, high output UV lamps maximize the output of germicidal UV energy.

Standard Features
• Audible/ Visual Lamp Failure Alarm
• No-tools Maintenance
• Safety Cap
• Elecronic Power Supply

It is strongly recommended (by all UV manufacturers) for maximum efficiency of your UV Sterilization, that you pre-filter your water with a 5 Micron sediment cartridge.

Do not connect plastic pipe or tubing directly to the UV system because the UV light will break down plastic over time. The best way to make the connection is with Dielectric Unions that allow for a connection from stainless steel to copper, that will not corrode. We have dielectric unions available at the bottom of this page.

Operating Parameters
• Iron less than 0.3 ppm
• Hardness less than 7 grains (120 ppm)
• UV transmittance greater than 75%
