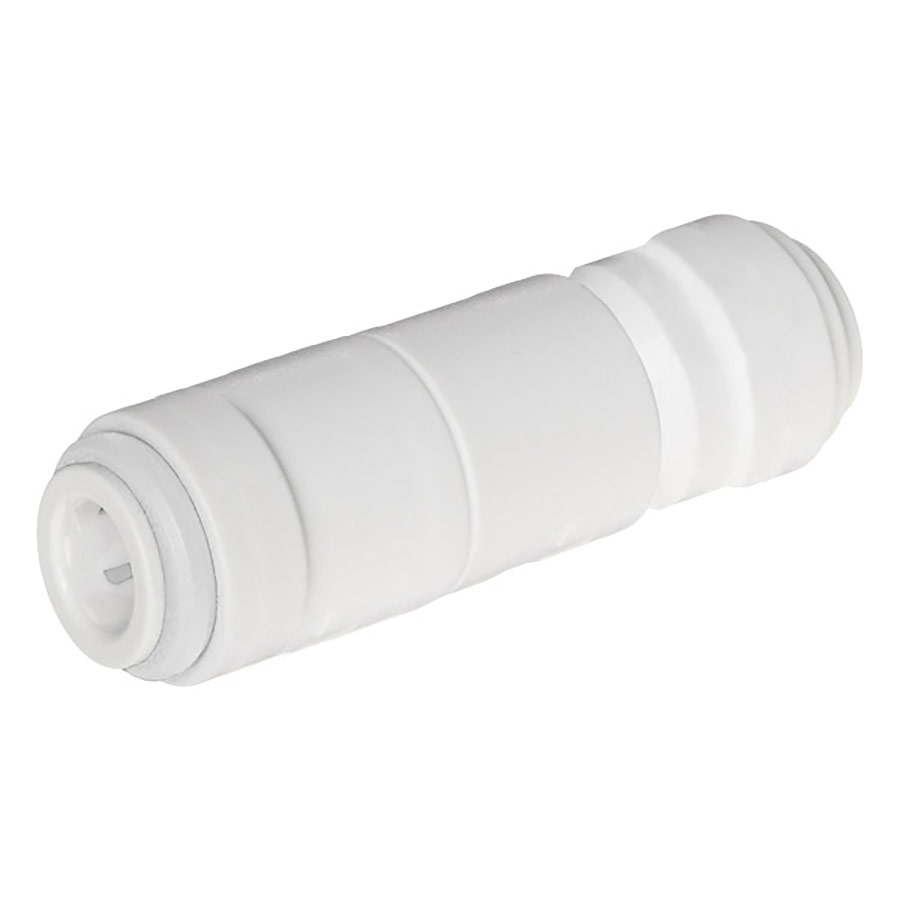

John Guest 1/4" One Way Check Valve

Model #: 1-4SCV, Part #: 1/4SCV

1-4SCVModel #:
300 UnitsCase Qty:
4.8 lbs.Case Wt:

Click for a Larger ImageClick for a Larger Image Print This PagePrint This Page Email to a CustomerEmail to a Customer Bookmark This PageBookmark This Page Contact UsContact Us
Made in the UK
Made in the UK
NSF® Certified
NSF 61 Certified

Produced at the request of leading companies in the Drinks Dispense industry, the Super Speedfit acetal Single Check Valve ensures protection against reversal of flow.

The valves can be mounted in any position and an arrow molded into the body indicates direction of flow. They are designed for conenction to either plastic or soft metal tube and they are intended for liquids only. Note that they are not suitable for air and vacuum applications.

The inner valve is spring loaded and the fitting produces low headloss.

  • Valves with low fixed cracking pressure (i.e 10 cm water column), that have not been activated for some time may take several seconds to reseal
  • It is the responsibility of the end user to verify that the product is suitable for his specific application.
  • It is also recommended that the non-return valve is regularly checked and maintained.

John Guest FittingsPipe connection has never been easier than with John Guest fittings. Click here to view simplified connection diagrams...
