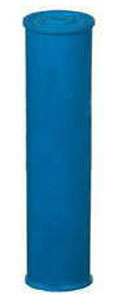

Aries 20" × 4½" Phostphate/GAC Cartridge (2 lbs of Phosphate)

Model #: AF-20-3312-BB


AF-20-3312-BB
Made in the United States
Made in the US
Model Dimensions Amount of Phosphate Flow Rate (GPM) Capacity (gal)
Operating Maximum
AF-10-3302 10" × 2-1/2" 0.25 lbs. 0.5 1.0 2,000
AF-10-3305 10" × 2-1/2" 0.5 lbs. 0.5 1.0 4,000
AF-20-3310 20" × 2-1/2" 1.0 lbs. 1.0 2.0 8,000
AF-20-3312 20" × 2-1/2" 2.0 lbs. 1.0 2.0 16,000
AF-10-3311-BB 10" × 4-1/2" 1.0 lbs. 2.0 4.0 8,000
AF-10-3312-BB 10" × 4-1/2" 2.0 lbs. 2.0 4.0 16,000
AF-20-3312-BB 20" × 4-1/2" 2.0 lbs. 3.0 5.0 16,000
AF-20-3314-BB 20" × 4-1/2" 4.0 lbs. 3.0 5.0 32,000


Product Type Ionic Form Approx. Ship Wt (lbs) Screen Size Water Retnetion Total Exchange Capacity Max. Operating Temp. (°F)
AGC-40 (Std, A, AD, AW) Granular Activated Carbon Na Dry-28
Wet-38
+12 <5
-40 <5
Dry <5
Wet 30-40
Mine 900
Iodine No.
250
General-purpose coal-based granular activated carbon. Standard grade for low pressure and minimum fines. Available as dry or premoistened (dust free) and as standard or acid washed.


Product Type Ionic Form Approx. Ship Wt (lbs) Screen Size Water Retnetion Total Exchange Capacity Max. Operating Temp. (°F)
AGC-50 (Std, A, AD, AW) Granular Activated Carbon Na Dry-28
Wet-38
+20 <5
-50 <5
Dry <5
Wet 30-40
Mine 950
Iodine No.
250
General-purpose coal-based granular activated carbon. Standard grade for low pressure and minimum fines. Available as dry or premoistened (dust free) and as standard or acid washed.
