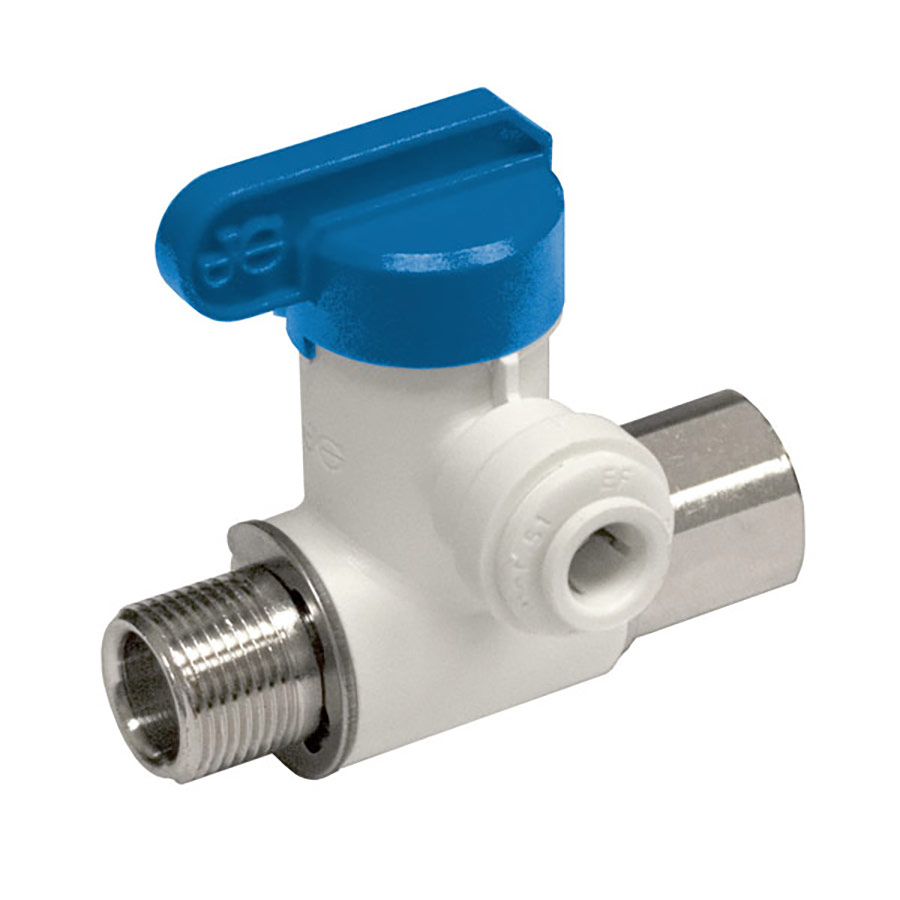

John Guest Angle Stop Adaptor Valve - Lead Free 3/8" Male Compression × 3/8" Female Compression × 1/4" Tube

Model #: ASVPP1LF


ASVPP1LF
ASVPP1LFModel #:
30 UnitsCase Qty:
4.8 lbs.Case Wt:

Click for a Larger ImageClick for a Larger Image Print This PagePrint This Page Email to a CustomerEmail to a Customer Bookmark This PageBookmark This Page Contact UsContact Us
Made in the UK
Made in the UK
NSF® Certified
NSF 61 Certified

This John Guest angle stop valve has been developed to tap into an existing cold water line between the shut-off valve (angle stop) and the bottom of the riser tube that goes up to the faucet. It is ideal for use as a water "feed/supply" source for applications involving:

  • Reverse Osmosis
  • Filtration Systems
  • Ice-Makers
  • Automatic Coffee Brewers
  • And Many More...

Features:

  • John Guest push-in tube connection
  • 90° handle movement between on and off positions
  • Can be swiveled for better positioning
  • Polypropylene body construction
  • Sturdy nickel plated brass threads

Click here to see installation instructions for the angle stop adaptor valve.

Photograph showing how the PPASV121208W attaches to the surrounding piping:

John Guest FittingsPipe connection has never been easier than with John Guest fittings. Click here to view simplified connection diagrams...
