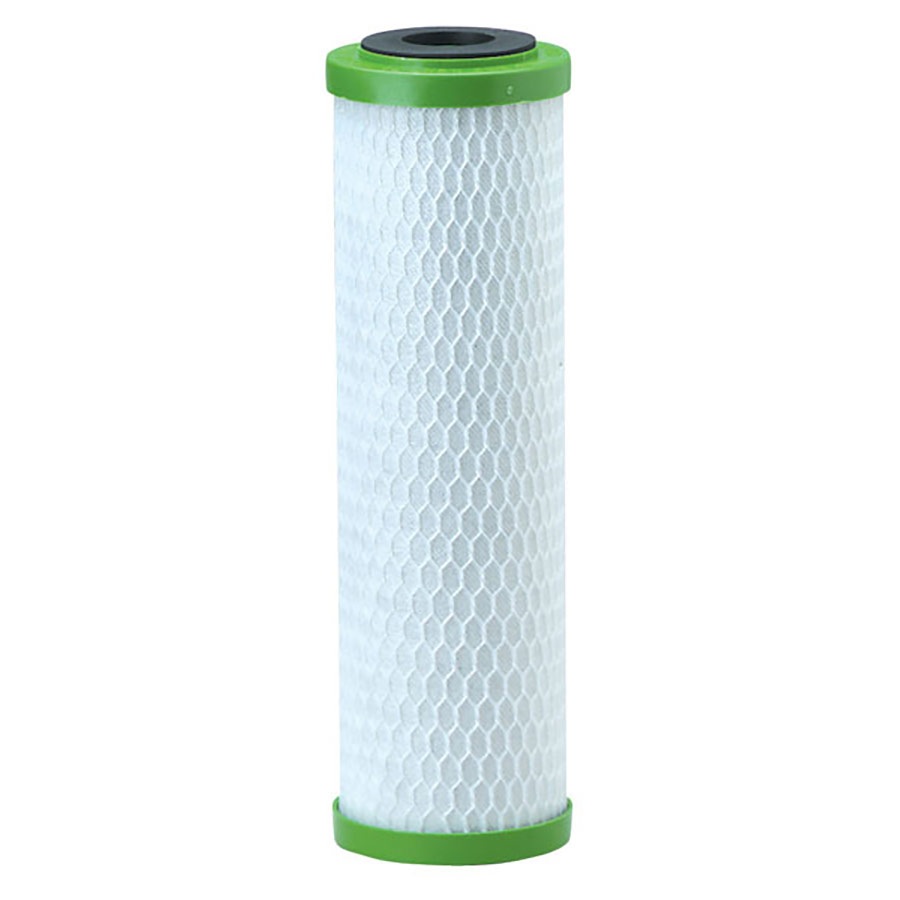

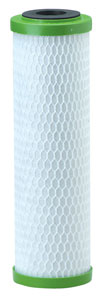

Pentek CBR2 10R", 0.5 Micron Carbon Block Cartridge w/ Built-in Flow Restrictor

Model #: CBR2-10R, Part #: 155403-43


CBR2-10R
CBR2-10RModel #:
051678403433UPC #:
12 UnitsCase Qty:
19.4 lbs.Case Wt:

Click for a Larger ImageClick for a Larger Image Print This PagePrint This Page Email to a CustomerEmail to a Customer Bookmark This PageBookmark This Page Contact UsContact Us
Download Product Sheet PDF format, requires Adobe Acrobat to viewRequires Adobe Acrobat

The CBR2-10 and CBR2-10R are advanced multimedia cartridges designed to reduce chlorine taste and odor, dissolved and particulate lead, cysts, MTBE and certain volatile organic chemicals (VOCs).* The CBR2-10 and CBR2-10R feature a 99.95% removal rate for lead from water.

CBR2 Series cartridges are manufactured using a patented process, and combine powdered activated carbon (PAC) with a specially designed adsorbent medium for lead and mercury reduction.

These cartridges are protected by Endurawrap, a uniquely formulated polyolefin bilaminate prefilter, designed to significantly increase the useful life of the cartridge by trapping sediment that typically plugs carbon block cartridges.

In addition to lead reduction, the unique structure of the carbon block enables it to reduce Giardia, Cryptosporidium, Entamoeba and Toxoplasma cysts and fine sediment particles down to 0.5 microns.*

As with our standard CBC Series carbon block, both the CBR2-10 and CBR2-10R are effective at reducing levels of chlorine taste & odor, MTBE and VOCs.*

The CBR2-10R has a built-in flow restrictor (0.6 gpm) to allow for maximum contact time.

  • Pentek is the largest brand in the filtration industry
  • Pentek is the originator of carbon block production technology
  • Pentek is the largest producer of carbon blocks worldwide

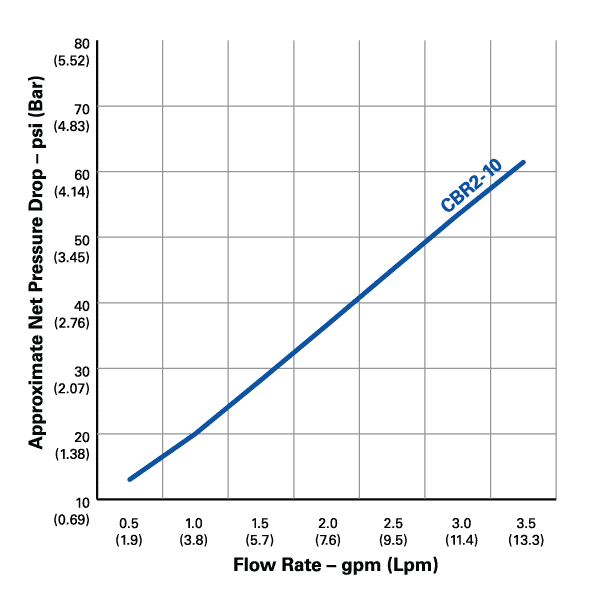

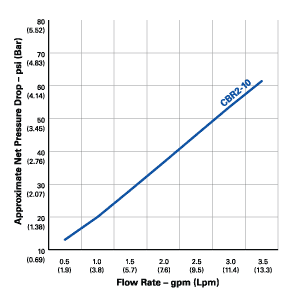

Model Maximum Dimensions Nominal µm Rating* Initial ΔP @ Flow* Chlorine Capacity @ Flow*
CBR2-10 9-3/4" × 2-7/8" 0.5 µm 15.0 psid @ 1.0 GPM >20,000 gal @ 1.0 GPM
CBR2-10R 9-3/4" × 2-7/8" 0.5 µm Restricted to 0.6 GPM >20,000 gal @ 0.6 GPM

* Based on manufacturer's internal testing.
