ResinTech Premium Grade Gel Softening Resin
Softening/Demineralization (Na Form)

Model #: CG8

ResinTech CG8 is a premium grade, high capacity, gelular, sulfonated, polystyrene cation resin supplied in the sodium or hydrogen form as moist, tough, uniform, spherical beads. ResinTech CG8 is intended for use in all water softening, dealkalization, deionization and chemical processing applications.

Features & Benefits:

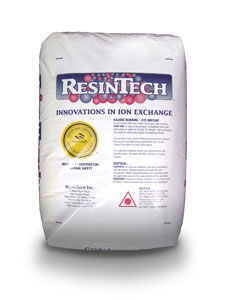

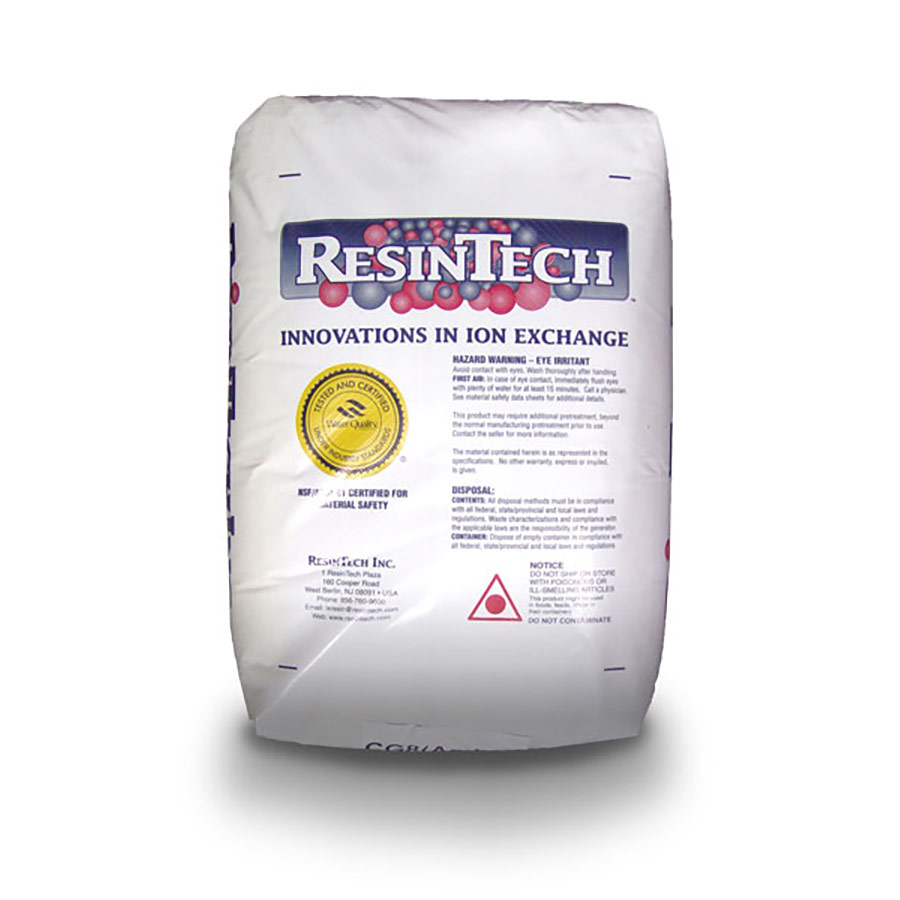

  • Bag: 1 cubic foot, 52 lbs
  • Crosslink: 8%
  • Complies with FDA regulations
  • Complies with USDA regulation for potable water systems
  • Certified NSF/ANSI-61 certified for material safety
  • Highly uniform particle size, low pressure drop
  • Superior physical stability
  • Low color throw




Pressure Drop

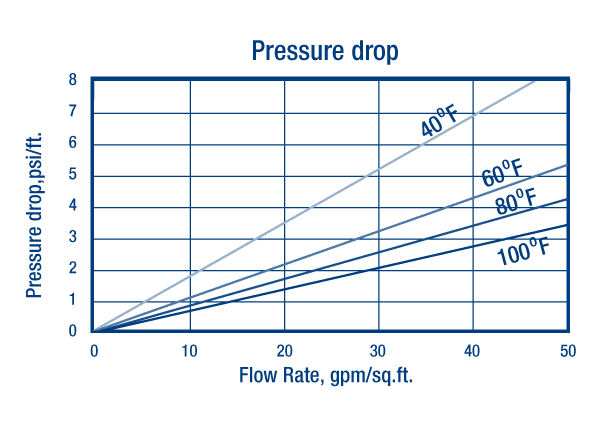

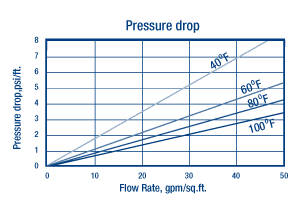

The chart below shows the expected pressure loss per foot of bed depth as a function of flow rate, at various temperatures.


Backwash Expansion

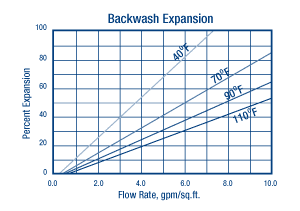

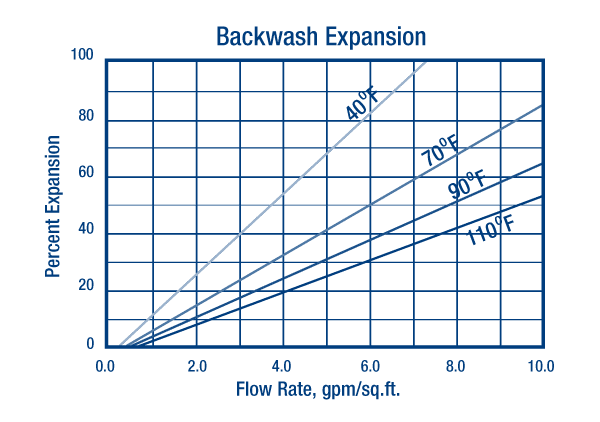

After each cycle the resin bed should be backwashed at a rate that expands the bed 25 to 50 percent. This will remove any foreign matter and reclassify the bed. The chart below shows the expansion characteristics of ResinTech CG8 in the sodium form.


ResinTech Packaging
