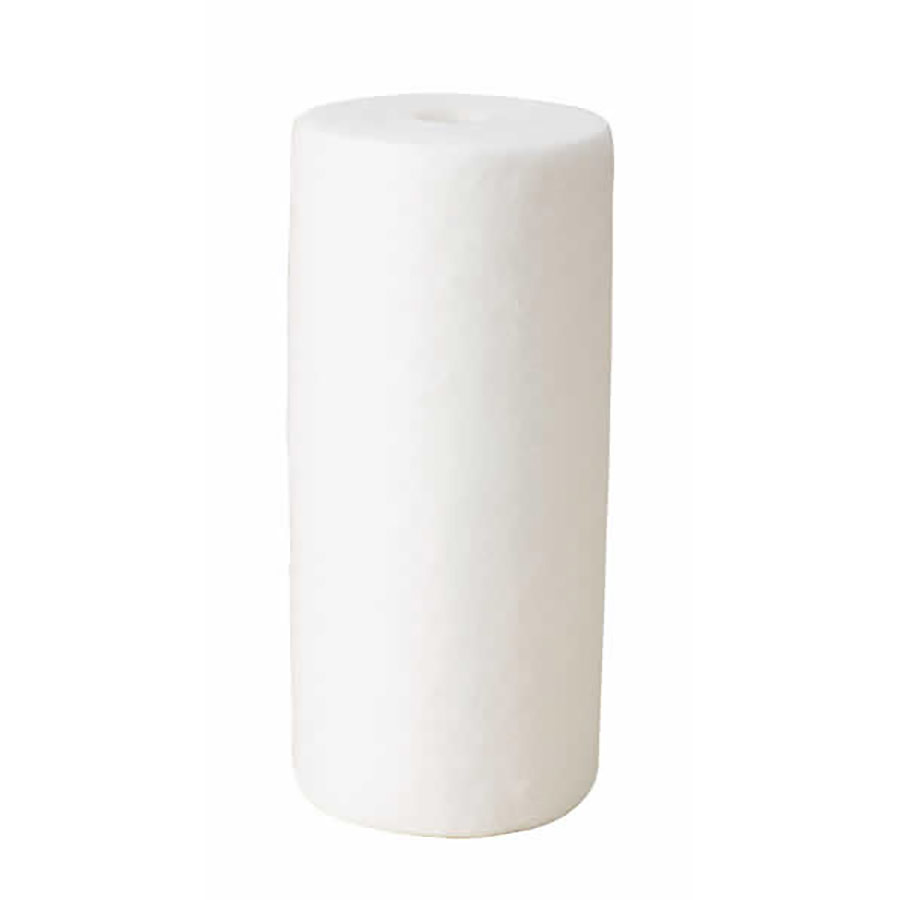

Pentek Dual Gradient 10" × 4½", 50/5 Micron Sediment Filter

Model #: DGD-5005, Part #: 155357-43

DGD-5005Model #:
051678357439UPC #:
8 UnitsCase Qty:
10 lbs.Case Wt:

Click for a Larger ImageClick for a Larger Image Print This PagePrint This Page Email to a CustomerEmail to a Customer Bookmark This PageBookmark This Page Contact UsContact Us
Download Product Sheet PDF format, requires Adobe Acrobat to viewRequires Adobe Acrobat
NSF® Certified
NSF 42 Certified

DGD Series cartridges are manufactured from 100% pure polypropylene and are sized for use in our Big Blue filter housings.

DGD Series cartridges are designed for purity and will not impart taste, odor or color to the liquid being filtered. Additionally, the polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.

The DGD Series' advanced design combines selective final filtration with appropriate pre-filtration to achieve up to three times the dirt-holding capacity of similar size sediment cartridges and even greater capacity than standard spun or string-wound cartridges. This performance enhancement is achieved by combining two separate gradient layers in one filter.

The larger diameter of the pre-filter reduces the particle load to the post filter, allowing it to operate at higher velocities. The effective filter depth is increased to a full 233% of standard spun-polypropylene or string-wound filters. This increased depth provides for very high particulate reduction efficiencies and added loading capacity.

The unique design and performance characteristics of the DGD Series cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.

Model Maximum Dimensions Nominal µm Rating* (Pre/Post Filter) Initial ΔP @ Flow*
DGD-2501 10" × 4-1/2" 25/1 µm <1 psid @ 10.0 GPM
DGD-5005 10" × 4-1/2" 50/5 µm <1 psid @ 10.0 GPM
DGD-7225 10" × 4-1/2" 75/25 µm <1 psid @ 10.0 GPM
DGD-2501-20 20" × 4-1/2" 25/1 µm <1 psid @ 20.0 GPM
DGD-5005-20 20" × 4-1/2" 50/5 µm <1 psid @ 20.0 GPM
DGD-7525-20 20" × 4-1/2" 75/25 µm <1 psid @ 20.0 GPM

* Based on manufacturer's internal testing.
