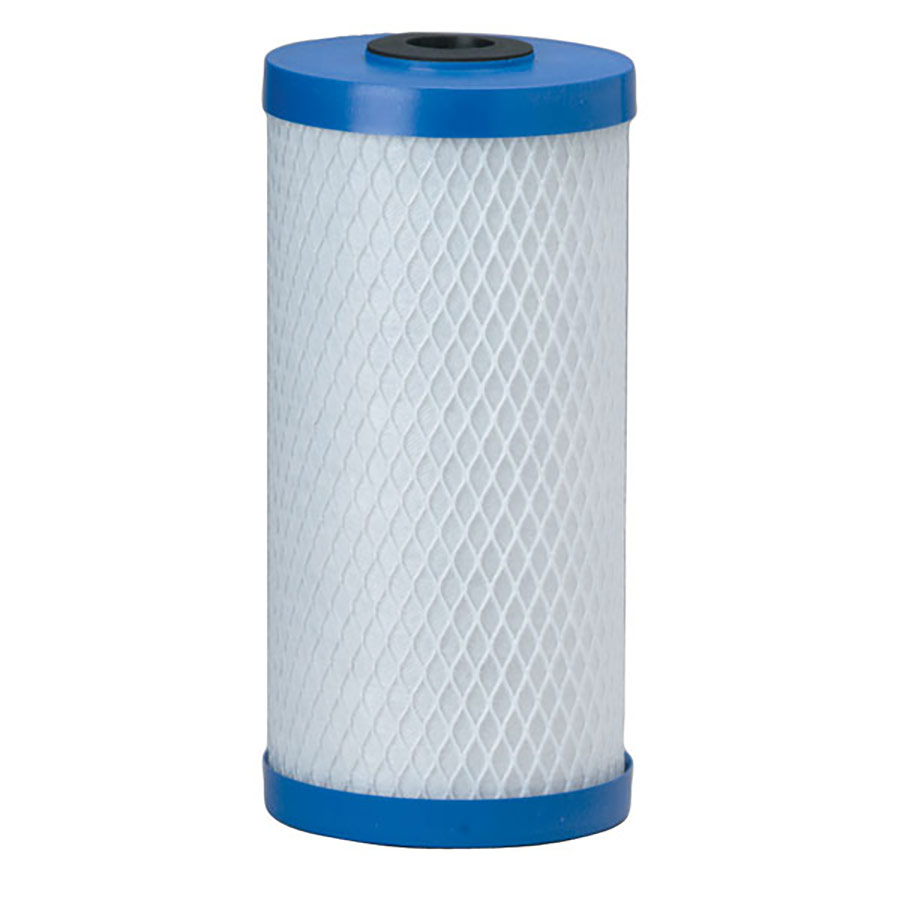

Pentek EP Big Blue 10" x 4.5", 5 Micron Carbon Block Cartridge

Model #: EP-BB, Part #: 155548-43

EP-BBModel #:

051678548431UPC #:

4 UnitsCase Qty:

12.5 lbs.Case Wt:

Click for a Larger Image

Print This Page

Email to a Customer

Bookmark This Page

Download Product Sheet PDF format, requires Adobe Acrobat to view

Requires Adobe Acrobat

Made in the US

NSF 42 Certified

EP Series carbon briquette cartridges are manufactured using a patented process that yields a cartridge with a nominal 5-micron filtration rating, high dirt-holding capacity. A high porosity design helps prevent the cartridge from plugging before its adsorption capacity is exhausted, maximizing the utilization of the carbon while maintaining low pressure drop.

These cartridges are protected by Endurawrap, a uniquely formulated polyolefin bilaminate pre-filter, designed to significantly increase the useful life of the cartridge by trapping sediment that typically plugs carbon block cartridges.

EP Series cartridges are manufactured entirely from FDA-compliant materials making them an ideal choice for a wide range of residential, food service, commercial and industrial applications.

Pentek is the largest brand in the filtration industry
Pentek is the originator of carbon block production technology
Pentek is the largest producer of carbon blocks worldwide

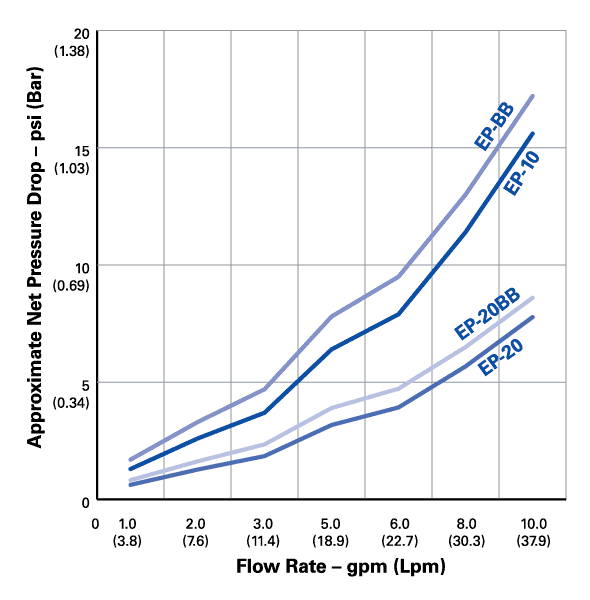

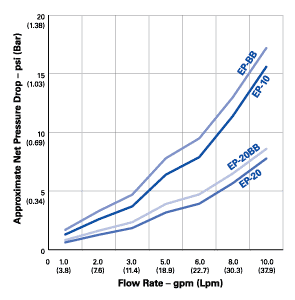

Model	Maximum Dimensions	Nominal µm Rating*	Initial ΔP @ Flow*	Chlorine Capacity @ Flow*
EP-10	9-3/4" × 2-7/8"	5 µm	3.4 psid @ 1.0 GPM	>6,000 gal @ 1.0 GPM
EP-20	20" × 2-7/8"	5 µm	3.4 psid @ 2.0 GPM	>12,000 gal @ 2.0 GPM
EP-BB	9-3/4" × 4-5/8"	5 µm	4.3 psid @ 2.0 GPM	>22,000 gal @ 2.0 GPM
EP-20BB	20" × 4-5/8"	5 µm	5.5 psid @ 5.0 GPM	>40,000 gal @ 4.0 GPM

* Based on manufacturer's internal testing.
