Fleck Control Valves - Model #5600 (Timer and Meter Control)

Product Features

Simple mechanical design is easy to understand
Two valve body designs: one for downflow regeneration and one for upflow (covers every valve in the 5600 family - quick access to all internal components)
Injector/drain modules containing the brine valve, flow controls and injector are removable from the valve's exterior
Ruggedly built timer is designed with heavy-duty 3/8" wide plastic gears
5600 controls are user friendly and easy to program
Non-corrosive, UV-resistant Noryl® valve body
Choice of 7 or 12 day clock or demand regeneration with either mechanical or electronic meter
Economical &emdash; small annual power consumption; keeps the time and activates the piston/valve mechanics with a single motor
Designed with double backwash

Options

Move your mouse over the following
links to swap out the photo:

Front | Back | Components

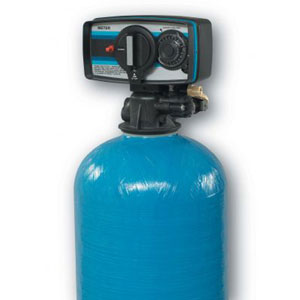

Model #: Fleck 5600

Download Specifications (PDF)

Valve Specifications

Valve material:	Noryl®*	Inlet/Outlet:	¾", 1" or 1¼" NPTF
Cycles:	7

Flow Rates (50 psi Inlet) - Valve Alone

Continuous (15 psi drop):	20 GPM	Peak (25 psi drop):	26 GPM
CV (flow at 1 psi drop):	5.0	Max. backwash (25 psi drop):	7 GPM

Regeneration

Downflow/Upflow:	Both	Adjustable cycles:	Brine flow only
Time available:	180 minutes

Meter Information (not applicable to timer model)

Meter accuracy range:

0.25 - 15 GPM ± 5%

Meter capacity range (gal.):

Standard: 125 - 2,125
Extended: 625 - 10,625

Dimensions

Typical Applications

Additional Information

Injector brine system:	1600	Electrical rating:	24v, 110v, 220v - 50 Hz, 60 Hz
Max. VA:	3	Estimated shipping weight:	Time clock: 5 lbs. Metered valve: 6 lbs.
Pressure:	Hydrostatic: 300 psi Working: 20 - 120 psi	Temperature:	34° - 110° F

Approvals

WQA Gold Seal system:

0.5 - 2.0 cu. ft.

UL registered component

* Noryl is a registered trademark of General Electric Company.
