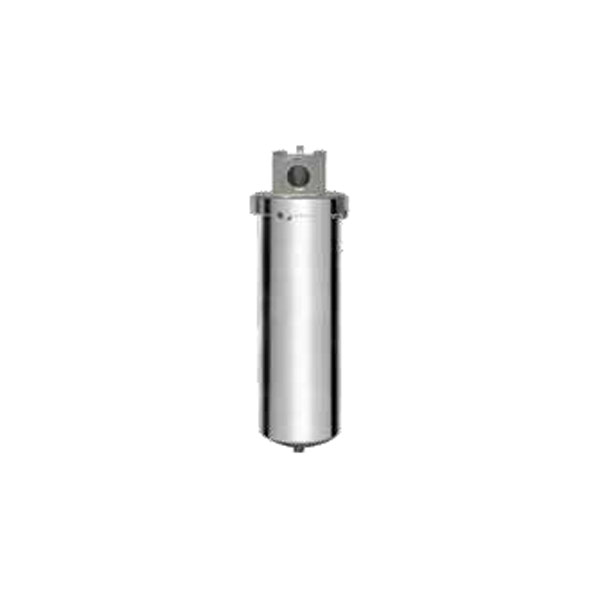

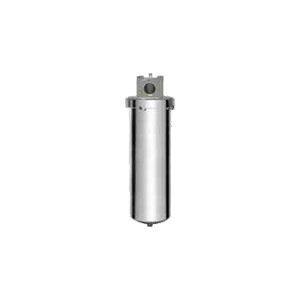

Harmsco 9¾" 304 Stainless Steel Single Cartridge Housing with 222/Flat Ends (3/4" Ports)

Model #: FSSS-1B-222

Harmsco FSSS Series Filter Housings are designed with a double o-ring compression which allows for positive sealing and easy access. Offered in DOE (double open end) or 222/Flat configurations.

*For 2" plumbing; not NSF Listed.

Applications

  • Food & Beverage Filtration
  • Reverse Osmosis Filtration
  • Process Water Filtration
  • Cutting Fluids
  • Lubricants
  • Plating Solutions
  • High Purity Water
  • Inks

Features

  • 304 or 316 stainless steel construction
  • 300 PSI (20.7 bar) pressure rating
  • Electro-polished finish
  • Offered in Double Open End or 222 / Flat configurations
  • Double o-ring compression seal for easy change out
  • Includes 1/8" NPT vent and 1/8" NPT drain
  • Inline design for easy installation
  • Knife edge seal at both cartridge ends to eliminate by-pass for DOE cartridges
  • Standard with wrench and mounting bracket

Filter Specifications

  • Finish - electro-polished
  • Inlet/Outlet - 3/4" on 9-3/4" housings and 1" on 20" housings
  • Construction - 304 or 316 stainless steel
  • Pressure - up to 300 PSI (20.7 bar) max
  • Temperature - up to 250°F (121°C) (filter housing only)
  • O-ring Closure Seal - silicone (standard)
