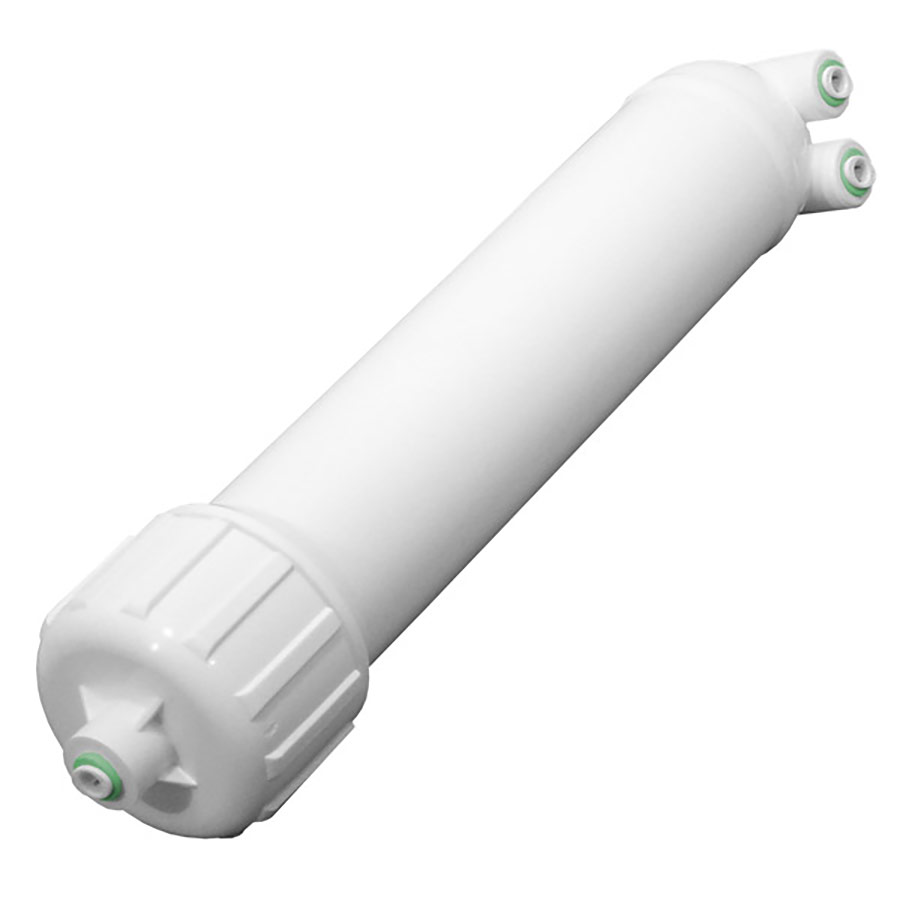

Reverse Osmosis Membrane Housing with 1/4" Quick-Connect Fittings

Model #: HM-QC

HM-QCModel #:
20 UnitsCase Qty:
21 lbs.Case Wt:

Click for a Larger ImageClick for a Larger Image Print This PagePrint This Page Email to a CustomerEmail to a Customer Bookmark This PageBookmark This Page Contact UsContact Us

Standard Size Reverse Osmosis Membrane Housing with built-in 1/8" quick-connect fittings.

Standard Residential Membranes made By Filmtec, GE and many others, ranging from 18 to 100 Gallons Per Day, will fit in this housing.

If you are replacing a membrane housing that has threaded fittings, you may need to replace your check valve. Many housings with threaded fittings have the check valve built-in to the threaded fitting in the center port on the end with two ports.

Our CV-10 push-in check valve is ideal for use with HM-QC. A check valve is required for proper functioning of an under sink reverse osmosis system that uses a bladder tank.

Typical Reverse Osmosis Membrane Measurements

A: 1.50" B: 11.75" C: 10.00" D: 0.875" E: 0.678"
