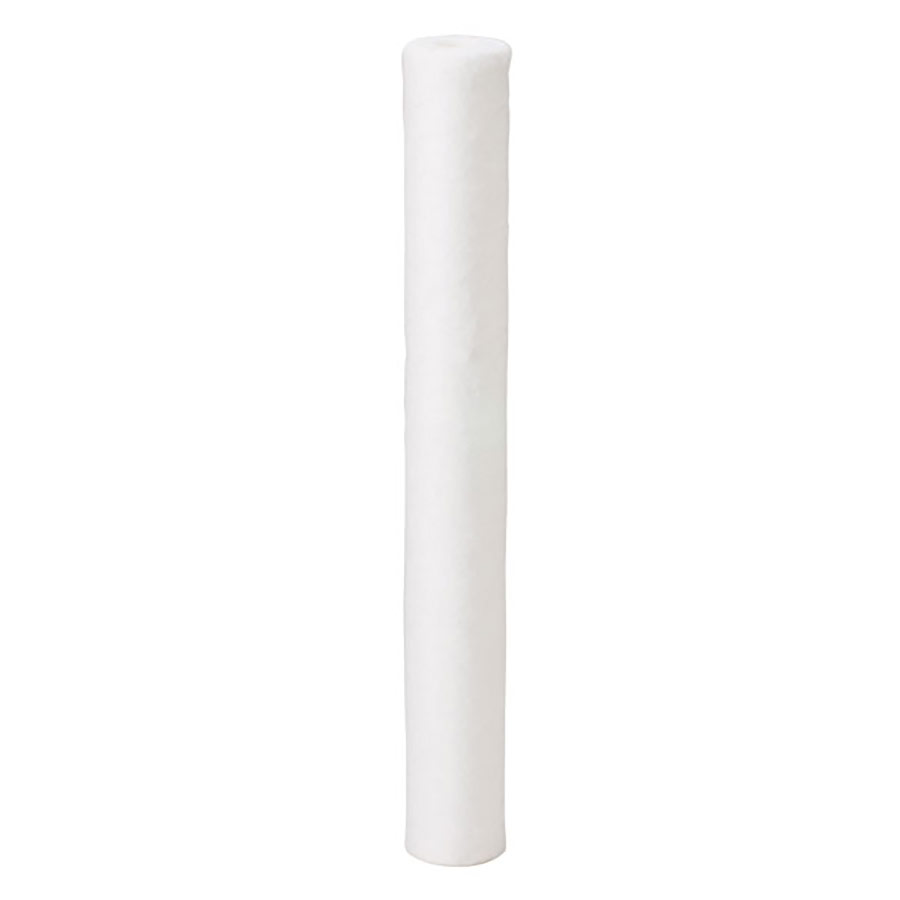

Pentek Spun Polypropylene 20" × 2-3/8", 5 Micron Sediment Filter

Model #: P5-20, Part #: 155016-43

P5-20Model #:

051678016435UPC #:

20 UnitsCase Qty:

15.6 lbs.Case Wt:

Click for a Larger Image

Print This Page

Email to a Customer

Bookmark This Page

Download Product Sheet PDF format, requires Adobe Acrobat to view

Requires Adobe Acrobat

NSF 42 Certified

P Series cartridges are manufactured from pure 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from outer to inner surfaces.

P Series cartridges are designed for purity. They will not impart taste, odor or color to the liquid being filtered when used within the recommended temperature limit. Additionally, the polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.

The coreless strength of the cartridges is achieved by sintering the many fibers into a solid matrix.

P Series cartridges are available in a wide array of sizes and micron ratings to accommodate all of your filtration needs.

Model	Maximum Dimensions	Nominal µm Rating*	Initial ΔP @ Flow*
P1	9-3/4" × 2-3/8"	1 µm	0.6 psid @ 5.0 GPM
P5	9-3/4" × 2-3/8"	5 µm	0.2 psid @ 5.0 GPM
P25	9-3/4" × 2-3/8"	25 µm	0.2 psid @ 5.0 GPM
P1-20	20" × 2-3/8"	1 µm	0.6 psid @ 10.0 GPM
P5-20	20" × 2-3/8"	5 µm	0.6 psid @ 10.0 GPM
P25-20	20" × 2-3/8"	25 µm	0.2 psid @ 10.0 GPM

* Based on manufacturer's internal testing.
