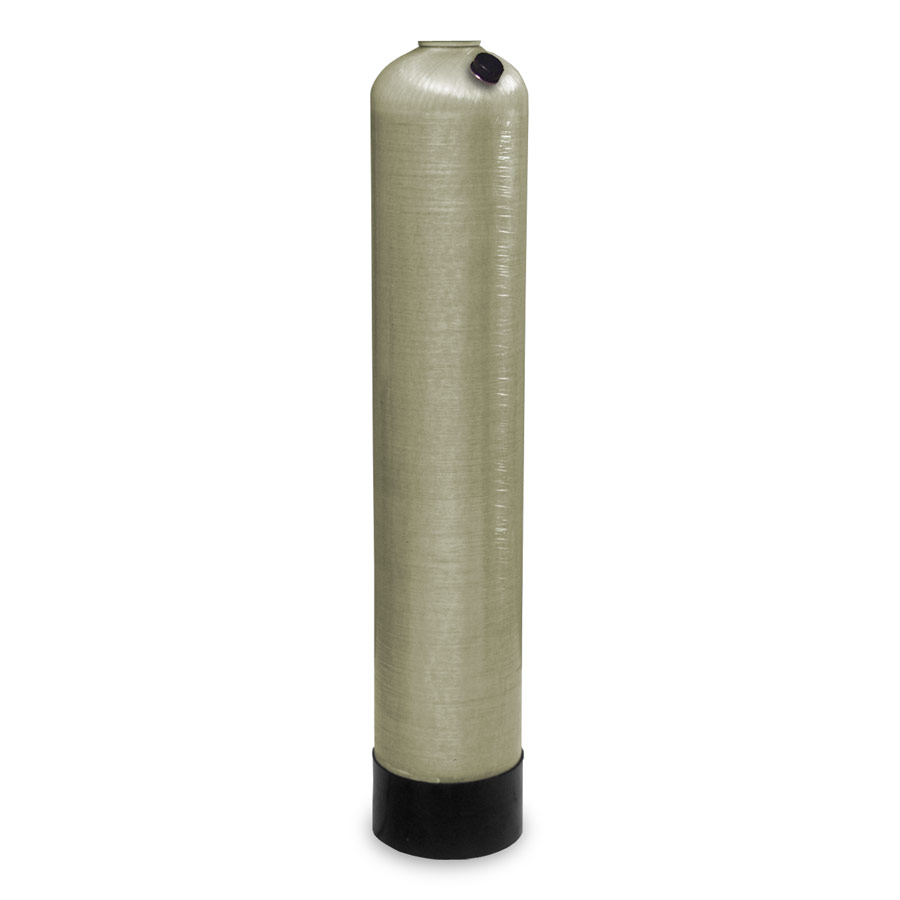

Pentair Structural Poly Glass Natural Tank 10" × 54" - 2.2 Cu. Ft., 16.4 Gallon Capacity with Dome Hole

Model #: PG1054-N-NDH-C

PG1054-N-NDH-CModel #:
1 UnitsCase Qty:

Print This PagePrint This Page Email to a CustomerEmail to a Customer Bookmark This PageBookmark This Page Contact UsContact Us
Made in the United States
Made in the US
NSF® Certified
NSF 61 Certified

Structural Poly Glass Vessels have been the industry standard for quality and performance for over 30 years. Featuring a one piece, seamless high density polyethylene liner and an encapsulated, leak free engineered polymer inlet, Structural Poly Glass Vessels are designed to provide you with years of worry free performance.

This tank features a dome hole designed for adding media in acid neutralizing systems.

Product Features

  • For residential and light commercial water softener/filtration applications
  • Slim diameter with capacities from 2 to 49 gallons
  • Unmatched for strength and chemical resistance
  • 10-year warranty for 6" - 13" vessels
  • 5-year warranty for 14" - 16" vessels
  • Material of Construction: Inner shell of polyethylene
  • 2.5" Threaded inlet
  • Maximum operating pressure: 150 psi
  • Maximum operating temperature: 120°F
  • Safety factor: 4:1
  • Minimum burst at 600 psi
  • Tested to 250,000 cycles without leakage
