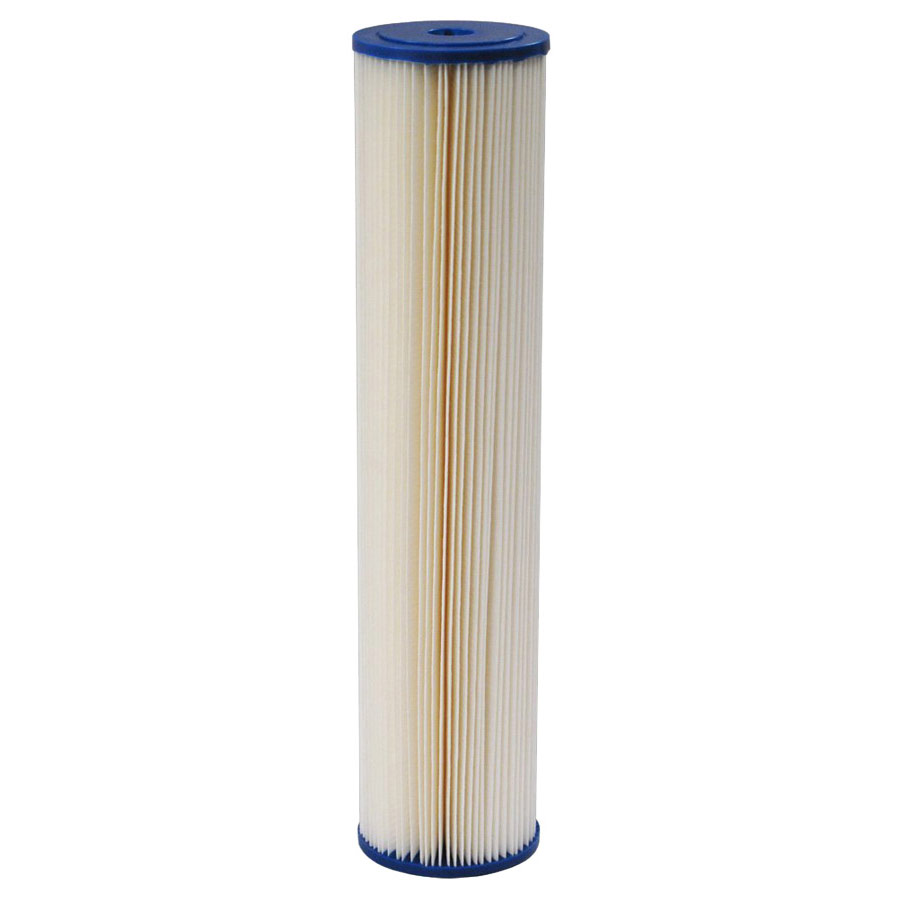

Harmsco Calypso Blue Poly-Pleat 20" × 4½", 1 Micron Absolute Pleated Sediment Cartridge (10 GPM, 20 sq ft Media)

Model #: PP-BB-20-1

PP-BB-20-1Model #:

642026038218UPC #:

4 UnitsCase Qty:

6 lbs.Case Wt:

Click for a Larger Image

Print This Page

Email to a Customer

Bookmark This Page

Download Product Sheet PDF format, requires Adobe Acrobat to view

Requires Adobe Acrobat

Made in the US

NSF 61 Certified

1 Micron Absolute Removal of Dirt, Rust & Sediment
BB/Full Flow Size 20" × 4.5" Sediment Cartridge

Initial pressure drop using Poly-Pleat cartridges is exceptionally low due to our pleated design and increased surface area. Pressure drop data is shown here, calculated for new cartridges in clear water.

Highly efficient filter cartridges made of pleated Polyester-Plus filter media. The industry's largest surface area.

Features & Benefits:

Lower overall operating cost
Longer filter runs for fewer change outs
Lower initial pressure drops
Reduced maintenance down time and cost
Increased contaminant removal
High flow capability - 10 GPM
Pleated design for more surface area
FDA approved materials - NSF 61 certified
Engineered media for superior performance
Cleanable and reusable in most applications and micron sizes
Thermally bonded end caps to ensure better sealing

Specifications:

Filter media - Polyester-Plus
Temperature - 140°F (standard cartridges) / 200°F (high temp. cartridges)
Media (sq ft) - 20
