Sterilight QS-463 Quartz Sleeve

Model #: QS-463

QS-463Model #:
696551605421UPC #:
1 UnitsCase Qty:
1.5 lbs.Case Wt:

Click for a Larger ImageClick for a Larger Image Print This PagePrint This Page Email to a CustomerEmail to a Customer Bookmark This PageBookmark This Page Contact UsContact Us
Made in Canada
Made in Canada

Replacement Quartz Sleeve for the following Sterilight Ultraviolet Sterilization System:

  • Sterilight Model S5Q-PA
  • Sterilight Model SSM-24
  • Sterilight Model S5Q
  • Sterilight Model S5Q-GOLD
  • Hydrosafe Model HSUV-SS-5-1 (made by Sterilight)

Superior Sterilight Packaging

Our Lamps & Quartz Sleeves are shipped with superior packaging shown here. When you order with us you can be assured that your parts with arrive in perfect working order.

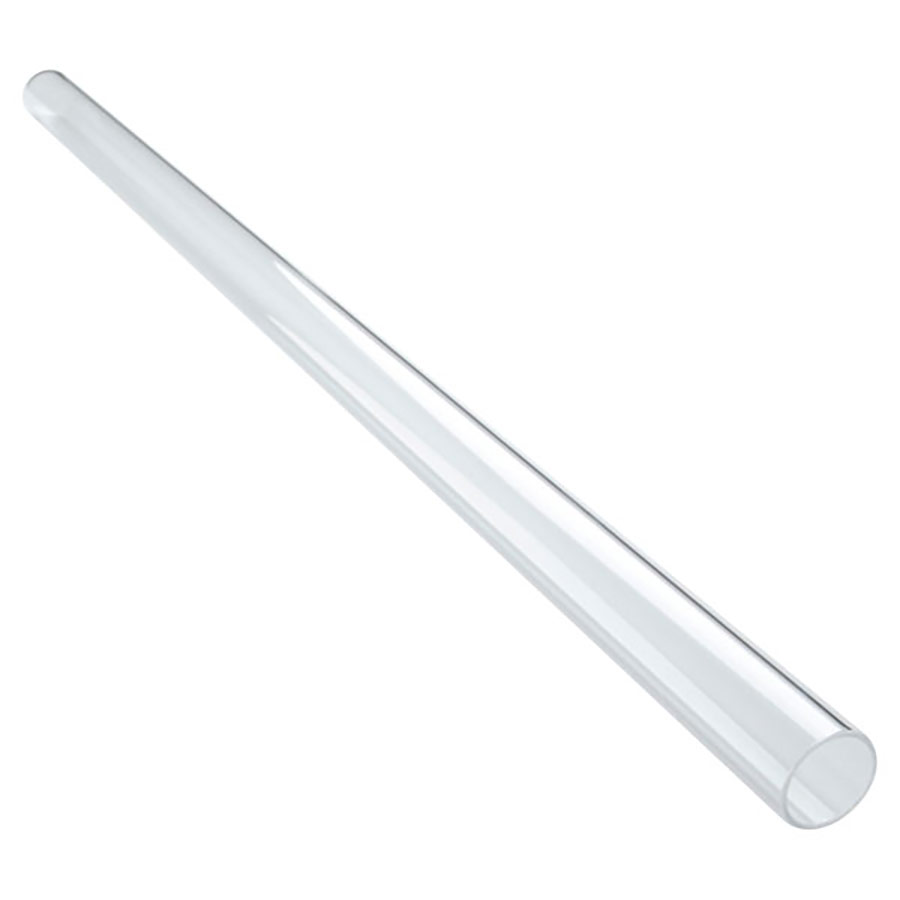

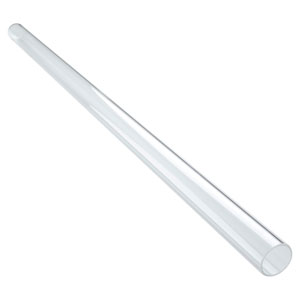

Quartz Sleeve

All Sterilight UV systems include a quartz sleeve, which surrounds the lamp. The quartz material used in R-Can's quartz sleeves are a 100% fused silica which lend to the sleeve's high transmittance. A high transmittance is important as the UV light must travel through the sleeve to get to the water.

There are a variety of quartz sleeve designs, depending on the system that they are being used in. The QS-463 is an open ended quartz sleeve which is used in the Silver, Silver 'Plus', the old style GOLD series, the 6 gpm 12V DC system and the 6 gpm vending system. All replacement sleeves are shipped with two o-rings.
