ResinTech Type 1 Strong Base Anion Resin
High Purity, Chloride Form

Model #: SBG1-HP

ResinTech SBG1 is a high capacity, shock resistant, gelular, Type 1, strongly basic anion exchange resin supplied in the chloride or hydroxide form as moist, tough, uniform, spherical beads. ResinTech SBG1 is intended for use in all types of deionization systems and chemical processing applications. It is similar to ResinTech SBG1P but has a higher volumetric capacity and exhibits lower TOC leach rates. This makes it the better performer in single use applications such as in cartridge deionization and when high levels of regeneration are used such as in polishing mixed beds. On the other hand, ResinTech SBG1P is more resistant to organic fouling and gives higher operating capacities at low regeneration levels such as those used in make up demineralizers.

Features & Benefits:

  • Complies with FDA regulations for potable water applications
  • High total capacity
  • NSF/ANSI 61 certified for material safety
  • Uniform particle size
  • Superior physical stability
  • Lower TOC leach rate

Pressure Drop

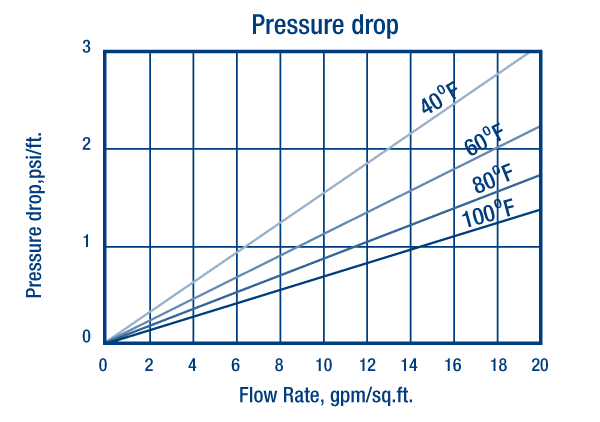

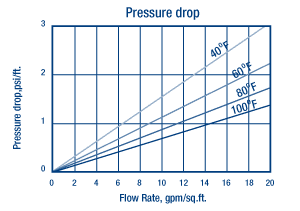

The chart below shows the expected pressure loss per foot of bed depth as a function of flow rate, at various temperatures.

Backwash Expansion

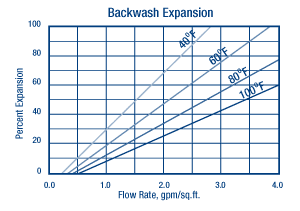

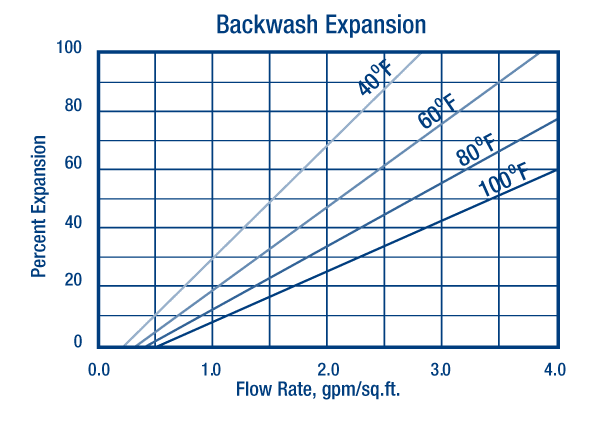

After each cycle the resin bed should be backwashed at a rate that expands the bed 50 to 75 percent. This will remove any foreign matter and reclassify the bed. The graph above shows the expansion characteristics of ResinTech SBG1 in the sodium form.
