Spun Polypropylene Sediment Filters

Spun Polypropylene Sediment Filters

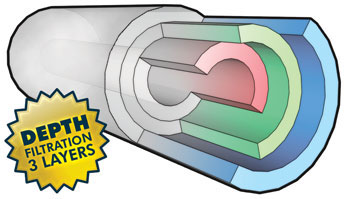

Spun polypropylene sediment filters in all standard 10", 20", and big blue sizes. Available with nominal µ ratings of 1, 5, 20, and 50. Ideal for aggressive chemicals and general filtration requirements when depth filtration is required. Each cartridges is individually shrink wrapped.

These filters are designed for the removal of dirt, rust and sediment from water. 5 and 20 µ are the most popular sizes for drinking water applications. Consider using a 20 µ cartridge first and then stepping down to a 5 µ cartridge.

Cartridges rated for temperatures up to 125 °F. Polypropylene construction for excellent chemical resistance. No binders, additives, or lubricants to leach into the water. 5 GPM max flow rate for 5 µ cartridge, 9¾" × 2½" OD.


10" × 2½" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
10 LF-PP-001-249 10" x 2.5" Gradient Density, 1 Micron, Melt Blown Polypropylene Filter 17 lbs. 50
10 LF-PP-005-249 10" x 2.5" Gradient Density, 5 Micron, Melt Blown Polypropylene Filter 17 lbs. 50
10 LF-PP-010-249 10" x 2.5" Gradient Density, 10 Micron, Melt Blown Polypropylene Filter 17 lbs. 50
10 LF-PP-020-249 10" x 2.5" Gradient Density, 20 Micron, Melt Blown Polypropylene Filter 17 lbs. 50
10 LF-PP-050-249 10" x 2.5" Gradient Density, 50 Micron, Melt Blown Polypropylene Filter 17 lbs. 50

Pentek® 10" X 2.5" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
Pentek® Spun Polypropylene 10" x 2-3/8", 1 Micron Sediment Filter P1 Pentek® Spun Polypropylene 10" x 2-3/8", 1 Micron Sediment Filter 10.1 lbs. 24
Pentek® Spun Polypropylene 10" x 2-3/8", 5 Micron Sediment Filter P5 Pentek® Spun Polypropylene 10" x 2-3/8", 5 Micron Sediment Filter 9.4 lbs. 24
Pentek® Spun Polypropylene 10" x 2-3/8", 25 Micron Sediment Filter P-25 Pentek® Spun Polypropylene 10" x 2-3/8", 25 Micron Sediment Filter 8.5 lbs. 24

20" × 2½" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
20 LF-PP-001-508 20" x 2.5" Gradient Density, 1 Micron, Melt Blown Polypropylene Filter 17 lbs. 25
20 LF-PP-005-508 20" x 2.5" Gradient Density, 5 Micron, Melt Blown Polypropylene Filter 17 lbs. 25
20 LF-PP-010-508 20" x 2.5" Gradient Density, 10 Micron, Melt Blown Polypropylene Filter 17 lbs. 25
20 LF-PP-020-508 20" x 2.5" Gradient Density, 20 Micron, Melt Blown Polypropylene Filter 17 lbs. 25
20 LF-PP-050-508 20" x 2.5" Gradient Density, 50 Micron, Melt Blown Polypropylene Filter 17 lbs. 25

Pentek® 20" X 2.5" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
Pentek® Spun Polypropylene 20 P1-20 Pentek® Spun Polypropylene 20" × 2-3/8", 1 Micron Sediment Filter 15.6 lbs. 20
Pentek® Spun Polypropylene 20 P5-20 Pentek® Spun Polypropylene 20" × 2-3/8", 5 Micron Sediment Filter 15.6 lbs. 20
Pentek® Spun Polypropylene 20 P25-20 Pentek® Spun Polypropylene 20" × 2-3/8", 25 Micron Sediment Filter 15.6 lbs. 20

10" × 4½" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
10 LF-PP-001-249-B 10" x 4.5" Gradient Density, 1 Micron, Melt Blown Polypropylene Filter 18 lbs. 18
10 LF-PP-005-249-B 10" x 4.5" Gradient Density, 5 Micron, Melt Blown Polypropylene Filter 18 lbs. 18
10 LF-PP-020-249-B 10" x 4.5" Gradient Density, 20 Micron, Melt Blown Polypropylene Filter 18 lbs. 18
10 LF-PP-050-249-B 10" x 4.5" Gradient Density, 50 Micron, Melt Blown Polypropylene Filter 18 lbs. 18

Pentek® 10" X 4.5" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
Pentek® Dual Gradient 10 DGD-2501 Pentek® Dual Gradient 10" × 4½", 75/25 Micron Sediment Filter 10 lbs. 8
Pentek® Dual Gradient 10 DGD-5005 Pentek® Dual Gradient 10" × 4½", 50/5 Micron Sediment Filter 10 lbs. 8
Pentek® Dual Gradient 10 DGD-7525 Pentek® Dual Gradient 10" × 4½", 25/1 Micron Sediment Filter 10 lbs. 8

20" × 4½" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
20 LF-PP-001-508-B 20" x 4.5" Gradient Density, 1 Micron, Melt Blown Polypropylene Filter 18 lbs. 9
20 LF-PP-005-508-B 20" x 4.5" Gradient Density, 5 Micron, Melt Blown Polypropylene Filter 18 lbs. 9
20 LF-PP-020-508-B 20" x 4.5" Gradient Density, 20 Micron, Melt Blown Polypropylene Filter 18 lbs. 9
20 LF-PP-050-508-B 20" x 4.5" Gradient Density, 50 Micron, Melt Blown Polypropylene Filter 18 lbs. 9

Pentek® 20" X 4.5" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
Pentek® Dual Gradient 20 DGD-7525-20 Pentek® Dual Gradient 20" × 4½", 25/1 Micron Sediment Filter 10 lbs. 6
Pentek® Dual Gradient 20 DGD-5005-20 Pentek® Dual Gradient 20" × 4½", 50/5 Micron Sediment Filter 10 lbs. 6
Pentek® Dual Gradient 20 DGD-2501-20 Pentek® Dual Gradient 20" × 4½", 75/25 Micron Sediment Filter 10 lbs. 6

5" × 2½" Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
1 Micron Melt Blown Polypropylene Filter LF-PP-001-124 1 Micron Melt Blown Polypropylene Filter 16 lbs. 100
5 Micron Melt Blown Polypropylene Filter LF-PP-005-124 5 Micron Melt Blown Polypropylene Filter 16 lbs. 100
20 Micron Melt Blown Polypropylene Filter LF-PP-020-124 20 Micron Melt Blown Polypropylene Filter 16 lbs. 100

10" × 2½" Grooved Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
10" x 2½" 1 Micron Grooved Melt Blown Polypropylene Filter LF-PP-001-249-G 10" x 2½" 1 Micron Grooved Melt Blown Polypropylene Filter 16 lbs. 50
10" x 2½" 5 Micron Grooved Melt Blown Polypropylene Filter LF-PP-005-249-G 10" x 2½" 5 Micron Grooved Melt Blown Polypropylene Filter 16 lbs. 50
10" x 2½" 20 Micron Grooved Melt Blown Polypropylene Filter LF-PP-020-249-G 10" x 2½" 20 Micron Grooved Melt Blown Polypropylene Filter 16 lbs. 50

20" × 2½" Grooved Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
20" x 2½" 1 Micron Grooved Melt Blown Polypropylene Filter LF-PP-001-508-G 20" x 2½" 1 Micron Grooved Melt Blown Polypropylene Filter 16 lbs. 25
20" x 2½" 1 Micron Grooved Melt Blown Polypropylene Filter LF-PP-005-508-G 20" x 2½" 1 Micron Grooved Melt Blown Polypropylene Filter 16 lbs. 25
20" x 2½" 20 Micron Grooved Melt Blown Polypropylene Filter LF-PP-020-508-G 20" x 2½" 20 Micron Grooved Melt Blown Polypropylene Filter 16 lbs. 25

10" × 4½" Grooved Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
10" x 4½" 1 Micron Grooved Melt Blown Polypropylene Filter LF-PP-001-249-B-G 10" x 4½" 1 Micron Grooved Melt Blown Polypropylene Filter 17 lbs. 18
10" x 4½" 5 Micron Grooved Melt Blown Polypropylene Filter LF-PP-005-249-B-G 10" x 4½" 5 Micron Grooved Melt Blown Polypropylene Filter 17 lbs. 18
10" x 4½" 20 Micron Grooved Melt Blown Polypropylene Filter LF-PP-020-249-B-G 10" x 4½" 20 Micron Grooved Melt Blown Polypropylene Filter 17 lbs. 18

20" × 4½" Grooved Melt Blown Cartridges

Part Number / Description Case Weight Case Qty
20" x 4½" 1 Micron Grooved Melt Blown Polypropylene Filter LF-PP-001-508-B-G 20" x 4½" 1 Micron Grooved Melt Blown Polypropylene Filter 17 lbs. 9
20" x 4½" 5 Micron Grooved Melt Blown Polypropylene Filter LF-PP-005-508-B-G 20" x 4½" 5 Micron Grooved Melt Blown Polypropylene Filter 17 lbs. 9
20" x 4½" 20 Micron Grooved Melt Blown Polypropylene Filter LF-PP-020-508-B-G 20" x 4½" 20 Micron Grooved Melt Blown Polypropylene Filter 17 lbs. 9
