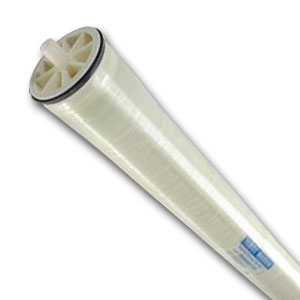

Dow Filmtec 6,000 GPD
Reverse Osmosis Membrane for Seawater

Model #: SW30HR-380

40" × 7.9" Filtration Element for Sea Water

The FILMTEC SW30HR-380 is a premium grade seawater reverse osmosis element featuring both high active area and high salt rejection to offer the best long-term economics for seawater desalination systems.

  • FILMTEC SW30HR-380 delivers the highest boron rejection to help customers meet World Health Organization (WHO) and other drinking water standards.
  • FILMTEC SW30HR-380 elements deliver high performance over their operating lifetime without the use of oxidative post-treatments like many competitive products. This is one reason why
  • FILMTEC elements are more durable and may be cleaned more effectively over a wide pH range than other RO elements.
  • Automated, precision fabrication with a greater number of shorter membrane leaves, reduces the overall effect of fouling and maximizes membrane efficiency.

Nominal Active Surface Area: 380.0 sq. ft. (35.0 m²)
Permeate Flow Rate: 6,000 GPD (23.0 m³/d)
Stabilized Salt Injection: 99.7%

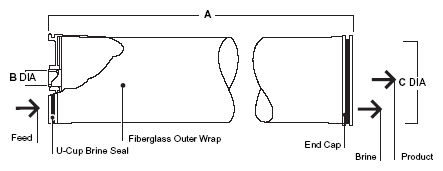

Filmtec Commercial Membrane Dimensions
A: 40.0" B: 1.125" C: 7.9"
