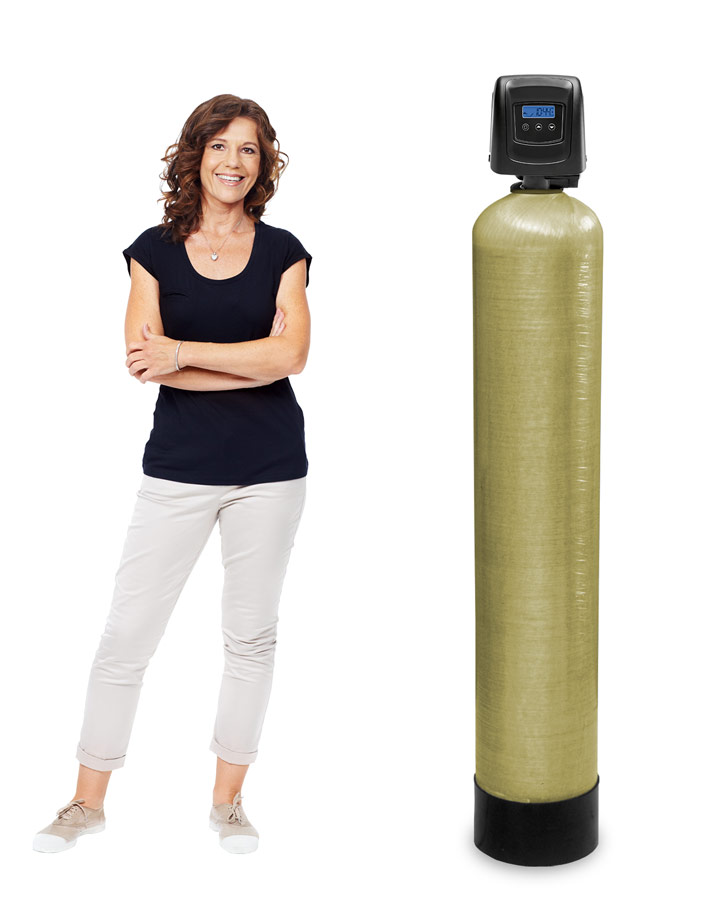

WH1054-MZ, Micro-Z Point-of-Entry Sediment Water Filter

Model #: WH1054-MZ

High performance granular filter media that outperforms conventional multimedia due to its unique zeolite structure, 2.8x's the load capacity of sand. Micro-Z media is capable of handling higher service flow rate and increased load capacity. 5-micron nominal rating.

These filters are designed to remove ferric iron (rust), silt, and turbidity. Sediment filtration down to the 5 - 10 µ level is common.


  • Automatic Backwashing Sediment Filter
  • Fleck 5600 is the most widely used control valve in the industry
  • Micro-Z ues 50% less water for backwashing compared to sand filters
  • No chemicals or salts used
  • System delivers Nominal 5 - 10 µ Filtration
  • Micro-Z Media never needs to be replaced!
  • 5 year warranty on valve
  • Rust proof fiberglass tanks feature 150 PSI operating pressure
  • Bypass valves included

For superior filtration, reduce flow rates by 1/3 of the standard flow rate specification.

Operating pressure: 20-150 psi (1.4-10.3 bar), Operating temperature: 36-120°F (2-48.9°C)

Structural Fibers Poly Glass Tanks are wound fiberglass, reinforced polyethylene, and are NSF listed and Made in the U.S.A.

This system uses
Micro-Z Media.
